Suspended ceiling lamp switch diagram

Suspended ceiling lamp switch diagram


 the idea of switching lamps using a regular variable resistor as a control is very good, but the above designs are based on poly comparator chips for LED level indicators. Unfortunately, such chips are not always found in stores. Therefore, using the same principle, I made a switch on the K561LN2 general application logic chip. containing six CMOS inverters.


make a DIY mini metal detector

While building a conventional metal detector may require a set or in-depth, a more famous way is to use a calculator and a radio device to m...


How to Make 10mH Coil for Metal Detector

In order to create your own, you must have enough wire to make the file,-wire for metal detectors, which includes the design of the search f...


Simple Metal detector using 555 IC

 Metal detectors where you are sensing the location of the minerals by means of a thorough survey of a piece of land through them, and as th...


Portable luminaire dimming control diagram

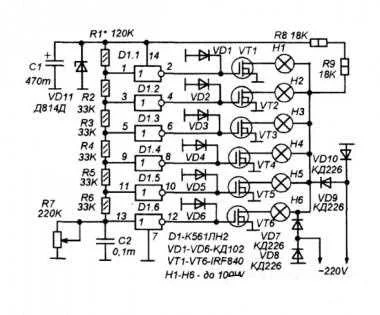

The schematic diagram is shown in Figure 1. It is based on a six-stage resistance meter R7, in which D1 inverters work as comparators.


Resistors R1 - R7 form a divider, the division ratio of which is regulated by the variable resistor R7. In accordance with the resistance of this resistor, the voltages at the inputs of the logic inverters change. All inverters have almost the same switching thresholds, but their inputs are connected to different parts of the voltage divider.


Therefore, the voltages at their inputs will be different. And depending on the resistance R7, a different number of logic elements will be switched Accordingly, a different number of switches on the VT1-VT2 FETs will be opened, and, therefore, a different number of lamps (or groups of lamps) of the suspended ceiling will be turned on.


Key stages are made on IRF840 field key high-voltage transistors Due to their low resistance in the open state, such switches can, at a voltage of 220V, control a load of up to 100-150 W without any noticeable heating at all. Therefore, they do not need radiators if the total power of lamps connected to one stage does not exceed this value.
