Metal detector Pirate with his own hands detailed instruction

 In this detailed article, let's talk about how to make a metal detector pirate himself and with his own hands, we will analyze everything on the shelves, all aspects of its assembly. From the principle of action, to a list of popular faults.


To start a little bit of the story from where this device came from, what are the reviews of the diggers and look at its characteristics.


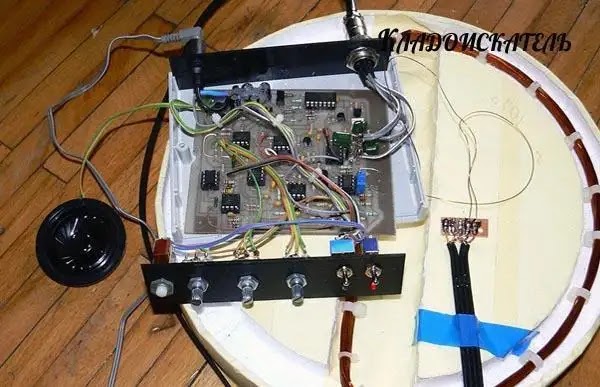

Metal detector Pirate with his own hands detailed instruction



Pirat is not a conqueror of the sea far, but such a reduction. PI means that this metal detector is pulsed, and rat is the site of the author of this MD, radioscot. As for the reviews, the pirate has gained the fame of a simple and not expensive device, usually novice creators of detectors begin with it. Reliability depends on the author and the quality of its assembly. Once assembled, it is immediately ready to go, it does not need to be set up.


Characteristics of the metal detector pirate:

Here is also a lot depends on the creator of this device, used parts and the diameter of the coil. Here's an example of the author's stated meaning:


Power voltage 9 - 12 volts.

Consumed current 30-40 mA.

Coin detection depth (25mm) is 20 cm.

The depth of detection of large metals is 150 cm.


Details:

The list of the right parts, for a metal detector pirate, is attached in the form of an image below. All these radio parts are not difficult to get, except for the comparator chip, it is relatively rare, but in stores it can be found, enough of them in the old Soviet technique. Now the question of what need details fell away, let's go further.


Metal detector pirate scheme


The classic concept of the pirate consists on the chip ne555, here is her drawing.


Metal detector pirate scheme on NE555

This circuit is made up of two blocks, an pulse generator and a comparator. In short, the principle of work is this: the pulse generator sends its pulses to one comparator input, and the second entrance of the comparator is pulsed from the coil. If there are signals on the two entrances of the comparator, then at its exit it is also there, the signal from the exit goes to the speaker, and it alerts us - metal here. In addition, the Internet has schemes, md pirate using chips tl072 and k561la7. No specific information on k561la7 has been found, so if there is something to say about it, we wait in the commentary, be sure to add to the article.


Metal detector scheme pirate on transistors

This is the second version of the scheme from the developer. As a generator here is used not a chip, and transistors, in the original version of the Soviet KT-361 and KT-361. But no one forbids experiments, other transistors, similar in parameters, will be good.


Microcontroller schemes: Pirate 2, Pirate 3, Pirate 4, will not be attached. As for the scheme for gold, there is no need for any individual manipulations. It is enough to collect an ordinary pirate and test it, it must react to any metals. Some people need to download printing schemes, you can click on the image and save yourself on the computer. If you have done a reworking of the scheme with your own hands, we will be happy to add your version to the article.


Metal detector Pirate with his own hands detailed instruction



So we talked in detail about the scheme of the metal detector pirate.


Metal detector pirate fee

Once from the author there are two variants of the scheme, therefore, there are two variants of the circuit board. Here's the image of the board on ne555:


Transistors fee


Here, by the way, is a fee on tl072, if anyone is interested. On SMD details.


Board sizes:

On transistors - 30 to 76.

On the NE555- 30-80.

SMD on TL072 - 26-35.

Metal detector pirate


Now let's talk about how to make a reel for the metal detector pirate with their own hands.


How The Garrett ACE 250 Metal Detector Works

There are many variations of the winding coil. The classic option is to take a pev 0.5 wire and winding 25 turns on some frame, a radius of 19-20 cm. It is recommended to go directly, and how the whole scheme will work, start experimenting with different plugs and adapters. If you like twisting - they should not be, it depends on sensitivity.


Some make a reel for a metal detector pirate, out of a twisted pair. This is a very good version of the coil. To make it, we need about 2.5 to 2.7 wires of a twisted pair. We find the middle and make a mark, then make a ring and also note as in the picture below. All this case fix and begin.
